Catalog and STAC

Build the local filebrowser binary.

make build-backend

Configure local state with sample package data and a public share.

export FB_ROOT="${FB_ROOT:-/workspace}"
export FB_DATABASE="${FB_DATABASE:-/db/bolt.db}"
export FB_SERVER_PORT="${FB_SERVER_PORT:-8888}"
export FB_CATALOG_PREVIEW_URL="${FB_CATALOG_PREVIEW_URL:-https://radiantearth.github.io/stac-browser/#/external/}"
BASE_URL="${BASE_URL:-http://127.0.0.1:$FB_SERVER_PORT}"
ITEM_ID="${ITEM_ID:-67793f0b9478720001790586}"
PUBLIC_SHARE_HASH="${PUBLIC_SHARE_HASH:-public-share}"

The catalog endpoint rewrites matching asset links to public packageR HTTP URLs. A STAC Browser or similar client can open those assets without S3 credentials or custom signing logic, as long as it follows HTTP redirects.

Prepare the catalog.parquet file below /public.

./init.sh --add-shares public-share=/public --add-test-data /public

Start packageR.

./filebrowser -p "$FB_SERVER_PORT"

In another terminal, run the checks below.

Request the public STAC FeatureCollection.

catalog_json="$FB_ROOT/catalog-stac-catalog.json"
curl -fsS "$BASE_URL/api/public/catalog/$PUBLIC_SHARE_HASH" \
  --output "$catalog_json"
python3 - "$ITEM_ID" "$catalog_json" <<'PY'
import json
import sys
from pathlib import Path

expected, catalog_path = sys.argv[1:]
catalog = json.loads(Path(catalog_path).read_text())
assert catalog["type"] == "FeatureCollection", catalog
assert expected in {feature["id"] for feature in catalog["features"]}, catalog
assert all(feature["type"] == "Feature" for feature in catalog["features"]), catalog
PY

Request one STAC item through a package asset path.

item_json="$FB_ROOT/catalog-stac-item.json"
curl -fsS "$BASE_URL/api/public/catalog/$PUBLIC_SHARE_HASH/openaerialmap-assets/$ITEM_ID/thumbnail.png" \
  --output "$item_json"
python3 - "$ITEM_ID" "$PUBLIC_SHARE_HASH" "$item_json" <<'PY'
import json
import sys
from pathlib import Path

expected_item, expected_share, item_path = sys.argv[1:]
item = json.loads(Path(item_path).read_text())
assert item["type"] == "Feature", item
assert item["id"] == expected_item, item
assets = item["assets"]
assert "thumbnail" in assets, item
thumbnail = assets["thumbnail"]["href"]
expected_path = f"/api/public/share/{expected_share}/openaerialmap-assets/{expected_item}/thumbnail.png"
assert expected_path in thumbnail, thumbnail
assert "presign" in thumbnail, thumbnail
assert "followRedirect" in thumbnail, thumbnail
PY

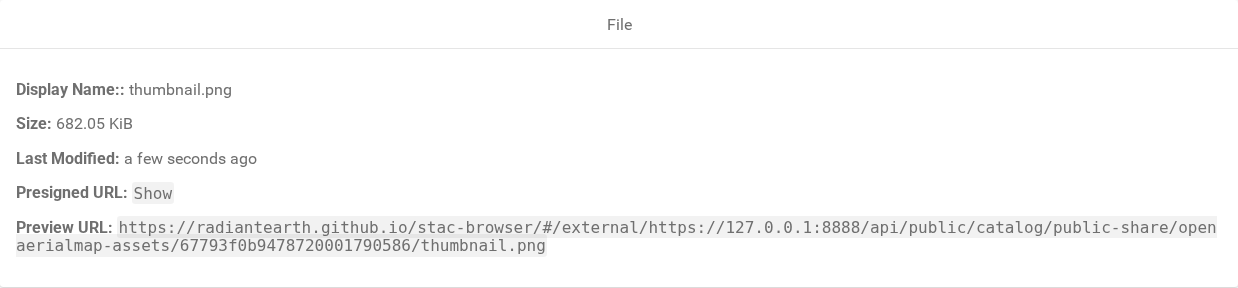

A public share can also expose a catalog preview URL. The configured prefix can point to STAC Browser or another external catalog viewer, while packageR supplies the public catalog endpoint as the target URL.

preview_json="$FB_ROOT/catalog-stac-preview.json"
curl -fsS "$BASE_URL/api/public/share/$PUBLIC_SHARE_HASH/openaerialmap-assets/$ITEM_ID/thumbnail.png?preview=true" \
  --output "$preview_json"
python3 - "$FB_CATALOG_PREVIEW_URL" "$PUBLIC_SHARE_HASH" "$ITEM_ID" "$preview_json" <<'PY'
import json
import sys
from pathlib import Path

preview_base, expected_share, expected_item, preview_path = sys.argv[1:]
preview = json.loads(Path(preview_path).read_text())
preview_url = preview["previewURL"]
expected_path = f"/api/public/catalog/{expected_share}/openaerialmap-assets/{expected_item}/thumbnail.png"
assert preview_url.startswith(preview_base), preview_url
assert expected_path in preview_url, preview_url
PY
