Package, share, and preview data

packageR publishes an object prefix as a browser package. Recipients do not need an account. Operators define packages before startup. Users can open the links in the web interface, but cannot change them.

Package an object prefix

Use the share command to map a public name to an object path. When PACKAGE_R_ROOT selects one bucket, the path is a prefix in that bucket:

./package-r shares add admin public /deliverables/26-06 \
  --description="June 2026 deliverables" \
  --expiration=30d
./package-r shares add admin f4ae91c8d2 /reports/report.tif

A prefix package lets a public visitor navigate below the configured path. A single-object package opens that object. The visitor cannot navigate above the configured path.

The package name is part of its URL. It must contain 1 to 20 lowercase letters, digits, dots, or hyphens.

Use --description to add a short label. Signed-in users see it with the share link in Settings.

Use --expiration to set the share lifetime. Use a positive number with days (d), calendar months (m), hours (H), or calendar years (y). For example, use 10d, 2m, 3H, or 2y. Leave it empty to create a share without an expiration.

A hard-to-guess name can reduce accidental discovery, but it is not an access control. Add a share password when recipients must authenticate before they open the package.

Public share directory

Protect a package with a share password

Pass the password when you add the share:

./package-r shares add admin f4ae91c8d2 /reports/report.tif \
  --password=my-password

The browser asks for the password before it opens the package. API clients send it in X-SHARE-PASSWORD. Read passwords from a deployment secret and do not write them to logs.

Use a direct object URL

Authenticated files and public shares use the same browser interface. Public shares are read-only and do not show upload, change, delete, download, or directory archive actions.

Open a supported file to preview it through a presigned URL. Select Info, then select Show next to Presigned URL to display the direct S3 GET URL. The file does not pass through packageR.

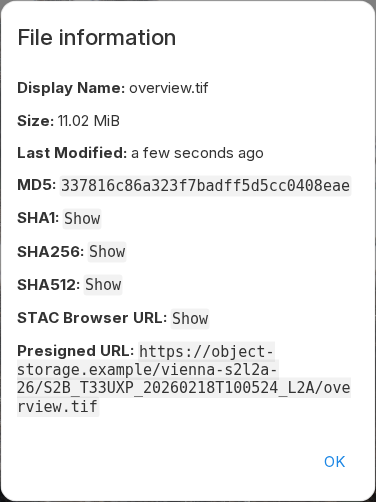

Public file links

The API can also return a 307 Temporary Redirect to the direct URL. See the HTTP API.

Preview a COG

Open a TIFF or GeoTIFF object from the file list or public share. The viewer uses the presigned URL and byte-range requests to load the required image parts.

If the viewer does not load, check:

  • S3 CORS access for the packageR origin
  • GET, HEAD, and the Range request header
  • exposed range and object metadata response headers
  • HTTP 206 Partial Content support in each storage proxy

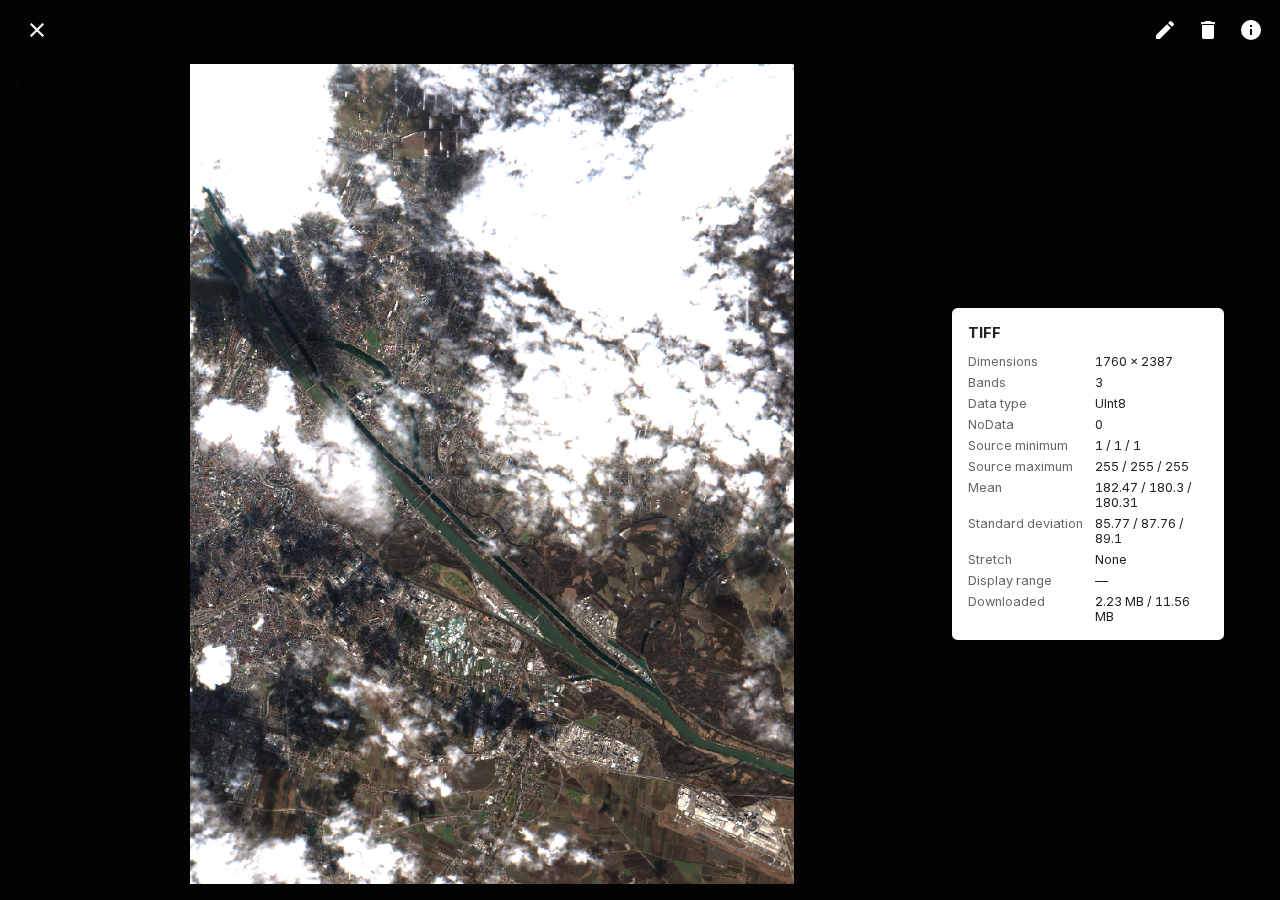

Authenticated image preview

Publish a STAC-compatible Parquet catalog

The vienna-s2l2a-26 example contains three Sentinel-2 Collection 1 Level-2A scenes from Earth Search by Element 84. The preparation script downloads the source COG ranges for February, May, and August 2026, clips them to Vienna, builds an RGB COG for each date, and writes the assets and metadata to one STAC catalog in Parquet format. This catalog also follows the STAC GeoParquet specification.

Place the Parquet catalog inside the shared directory. Each row needs id, STAC time data, and an assets JSON object with href values. The HTTP API lists all supported fields and limits.

Use relative asset paths when possible. packageR also resolves root-relative, HTTP(S), and s3:// paths that identify an object inside the share. External URLs stay unchanged. See ADR-002 for the matching rules.

Set the relative catalog path when you add the share. If an asset URI does not match the storage path, add an asset mapping to that share:

./package-r shares add admin vienna-s2l2a-26 /vienna-s2l2a-26 \
  --catalog-name=vienna-s2l2a-26.parquet \
  --asset-mappings='[{"from":"s3://data/","to":"."}]'

In this example, s3://data/item.tif maps to item.tif at the share root. Keep the trailing slash in s3://data/ so that the prefix does not also match similar bucket names. The to value must be relative and stay inside the share. Most catalogs do not need an asset mapping.

If --catalog-name is empty or omitted, the share has no catalog endpoint.

For the Vienna share, request the STAC Collection:

/api/public/catalog/vienna-s2l2a-26

Add a path below the share to select matching catalog entries:

/api/public/catalog/vienna-s2l2a-26/S2B_T33UXP_20260218T100524_L2A/

The root response is a STAC Collection that links to each matching Item. A path below the share returns a STAC Feature or FeatureCollection. Internal asset links become public package URLs.

packageR serves this endpoint dynamically. It uses DuckDB to query the Parquet catalog and renders the matching rows as STAC JSON when a client requests /api/public/catalog.

Use the absolute endpoint URL in a STAC Browser. Set the public browser's external-catalog URL when you prepare the database:

./package-r config set \
  --stac-browser-url=http://localhost:8080/external/

Also allow the browser origin to read the public catalog endpoint:

PACKAGE_R_CORS_ALLOWED_ORIGINS=http://localhost:8080

Serve packageR through HTTPS when you use an HTTPS STAC Browser. Web browsers block an HTTPS page from reading an HTTP catalog, including a catalog on localhost. For local development, make an existing STAC Browser checkout available at ~/stac-browser. This path can be a symbolic link. Install its dependencies once:

pnpm --prefix ~/stac-browser install

Start it with pnpm --prefix ~/stac-browser start and configure packageR with http://localhost:8080/external/. The repository's VS Code compound launch starts this local checkout together with packageR.

Open the public share and select Info to get the Collection preview link. Open an acquisition directory and select Info to get its Item preview link. For a file, the link appears above the presigned object URL. In each case, select Show next to STAC Browser URL.

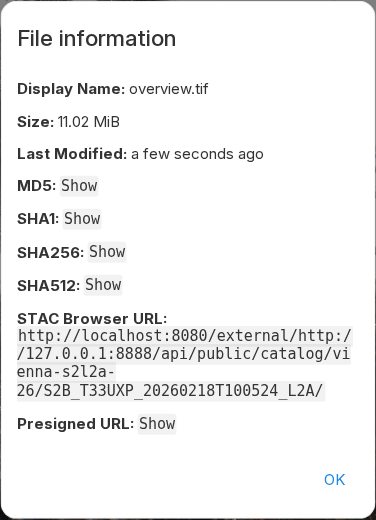

STAC Browser preview URL

Open the link to inspect the Item, its Vienna footprint, metadata, and assets in the configured STAC Browser.

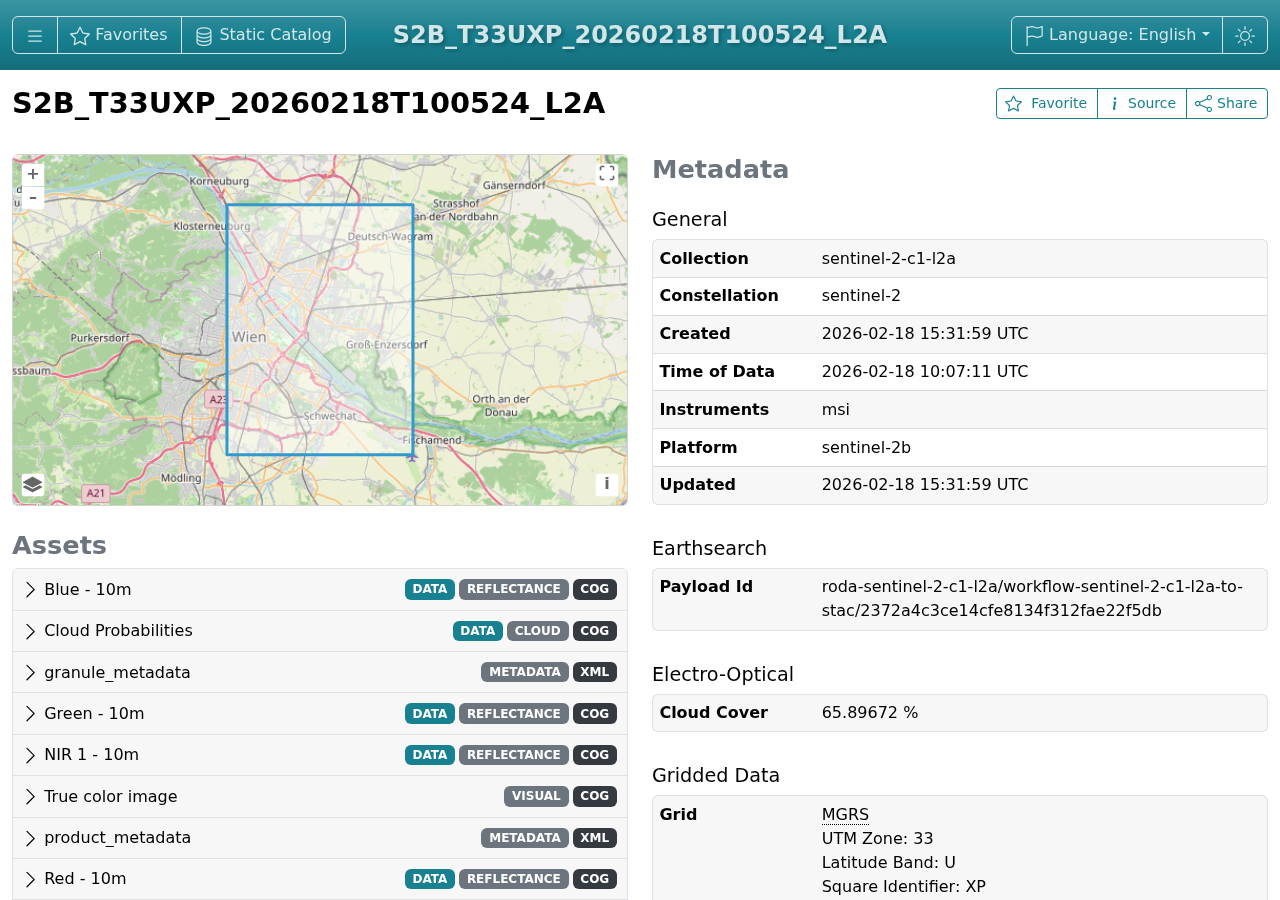

Vienna Sentinel-2 Item in STAC Browser

See the HTTP API for the response contract and limits.
